HM-T Turbine Type
 |
 |
|
|

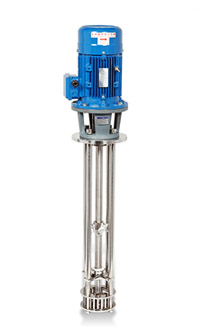

HM-T Flange installed type |
HM-T Bridge installed type |
HM-T Adjustable bridge installed type |
Features
● Based on design of flow guiding blade plate, with strong self-sucking ability. Powder sucked into tank suddenly without floating on liquid surface.
● Self-pump, cutting, crushing, impacting function to complete disperse and emulsifying effectively.
● Blade wheel designed, no need ultra high speed to reach homogenize result and extend life of consumable material.
● Material of flange and material contacted section are stainless steel, comsumable material is anti-corrosion, without toxic, meets requirement of pharmaceutical, food industry hygienic standard.
● Electrical system is based on IEC international standard specification, accessories are standardized, easy to maintenance.

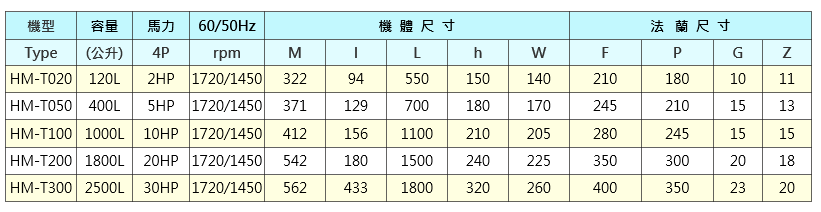

Specification
※ The reference capacity shown on above chart is based on water as medium. The actual selected model will be decided by raw material viscosity and character.
※ Mechanical dimension (L) is based on standard product, for meet the best performance, actual dimension will be designed as customer's tank.
※ The liquid height (h) is for self-lubricated roller bearing. If liquid level is lower than roller bearing, it's prohibited to start the equipment.
